Acrylic Manufacturing : Multifix table

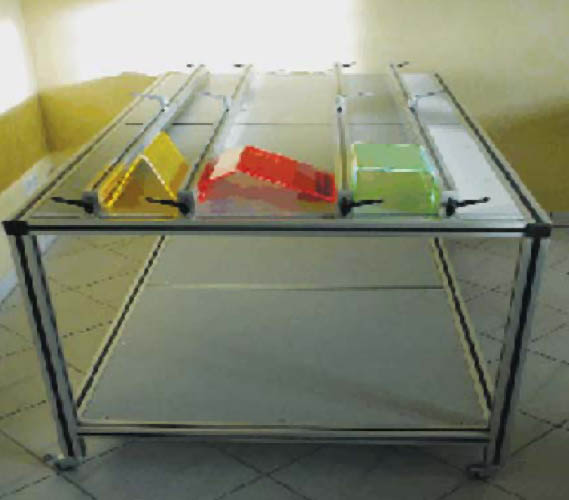

Multifix table

Due to the universal adjustment possibilities, countless angles or bending combinations can be produced on workpieces. With the multifixtable table you are able to produce chamfers from sharp to larger radii. These are normally dependent on the heating widths. The prerequisite for this is that the thermoplastic workpiece is heated to the required temperature at the desired bending point. After the workpiece has cooled down at the bending point, the formed parts are removed from the multifixtable table and a new operation can be carried out. The multifixtable table is mounted on four castors and can therefore be used flexibly at any workstation. The base frame is made of solid aluminium profile. The highly sliding surface of the worktop of the multifixtable table enables you to use it in a variety of ways. Several bending beams can be precisely fixed in any position over the working surface by means of a clamping lever and millimetre scale. Dimensions: width 900 mm, length 1650 mm, height 870 mm.


Your benefits at a glance:


⌧ Fast angle adjustment
⌧ No impressions in the bending area
⌧ Bending combinations possible
⌧ Flexible application due to track rollers
⌧ Highly gliding work surface
⌧ Multiple bending beams
⌧ Series chamfers
⌧ Bending radii:Sharp to larger radii
⌧ Scale adjustment accurate to the millimetre
